OVERVIEW

TURNKEY ANIMAL FEED PRODUCTION LINE

  • Capacity (t/h): 1-100 T/H All Available
  • Pellet size (mm) : 1.0-12.0mm
  • Final Product : Pellet Feed & Powder Feed & Roughage Feed.
  • Batching System: Manual / Semi-Automatic / Fully Automatic


LUODATE provides complete animal feed production line solutions for poultry (chicken, duck), livestock (cattle, sheep, pig), and aquatic feed (fish, shrimp). Our turnkey projects cover raw material handling, crushing, batching, mixing, pelletizing, cooling, screening, and packaging.


Solutions are tailored to feed type, capacity, raw materials, and facility conditions, covering design, manufacturing, installation, commissioning, and training.

Contact Us

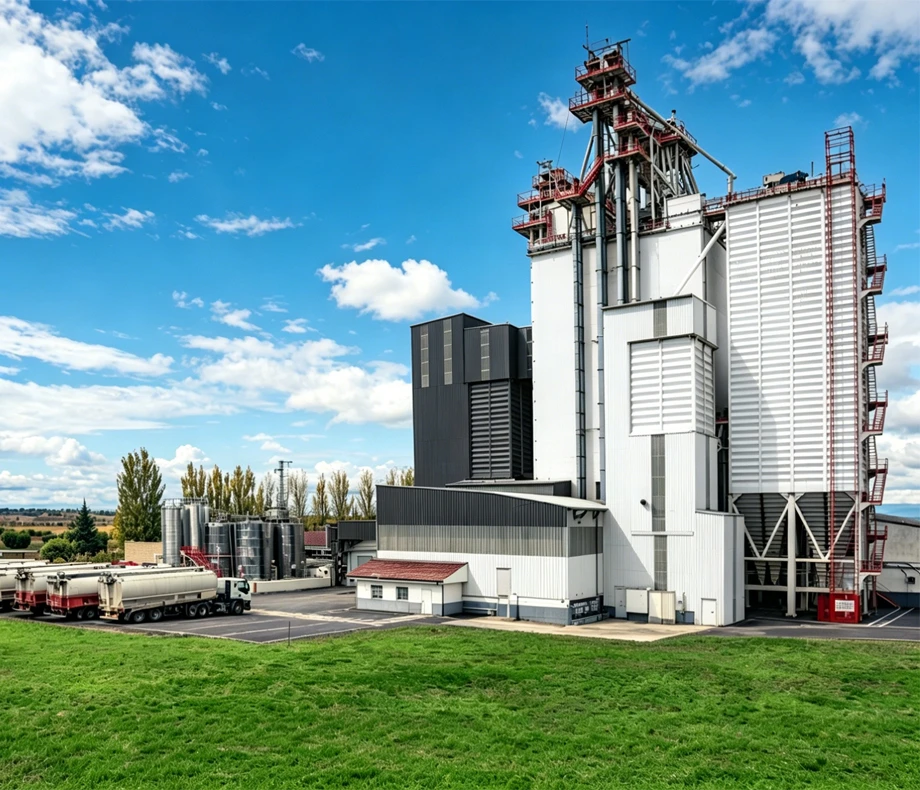

LUODATE Turnkey animal feed pellet production line

COMPLETE PROCESS FLOW
FOR ANIMAL FEED PRODUCTION

  • Pellet Feed Process Flow
  • Mash Feed Process Flow
  • Roughage Feed Process Flow
  • Floating Fish Feed Process Flow
  • Raw Material Crushing Section

    Raw Material Crushing Section

    Hammer mills grind raw materials into uniform particles, ensuring better mixing performance and more consistent pellet quality.

  • Batching & Mixing Section

    Batching & Mixing Section

    Automated batching and high-uniformity mixing deliver precise ingredient ratios and consistent nutrition across every batch.

  • Ring Die Pelleting Section

    Ring Die Pelleting Section

    Ring die pellet mills compress conditioned feed materials into uniform pellets with good density, smooth surfaces, and consistent quality.

  • Counterflow Cooling Section

    Counterflow Cooling Section

    LUODATE counterflow cooler reducing pellet temperature after pelleting.

  • Grading & Screening Section

    Grading & Screening Section

    LUODATE rotary screeners separating fines and irregular pellets to ensure uniform pellet size.

  • Automated Packaging Section

    Automated Packaging Section

    Automatic packaging systems ensure accurate weighing, efficient bagging, and reliable sealing of finished feed products.

  • Raw Material Receiving Section

    Raw Material Receiving Section

    The large-capacity intake pit receives bulk raw materials and transfers them to the cleaning stage at a controlled feed rate.

  • Raw Material Cleaning Section

    Raw Material Cleaning Section

    The pre-cleaner removes impurities and metal debris before grinding, protecting equipment and feed quality.

  • Raw Material Crushing Section

    Raw Material Crushing Section

    The hammer mill grinds raw materials to the target fineness required for the feed formulation.

  • Automated Batching Section

    Automated Batching Section

    The automated batching system weighs each ingredient to formulation ratios, ensuring accurate proportions in every batch.

  • Mixing Section

    Mixing Section

    The mixer blends ground materials and additives to uniform consistency for even nutrient distribution.

  • Automated Packaging Section

    Automated Packaging Section

    The automatic packaging system weighs and bags finished mash feed to specified weights, sealing each bag for storage and transport.

  • Cutting & Grinding Section

    Cutting & Grinding Section

    A forage chopper cuts long-stemmed forage to uniform lengths, and a hammer mill grinds it into grass powder.

  • Batching & Mixing Section

    Batching & Mixing Section

    Batching scales dispense each ingredient by programmed recipe weight, and a mixer blends the batch to a uniform consistency.

  • Grass Feed Pelleting Section

    Grass Feed Pelleting Section

    A ring die pellet mill compresses grass powder through die holes, forming dense pellets that retain the forage fiber structure.

  • Counterflow Cooling Section

    Counterflow Cooling Section

    A counterflow cooler draws ambient air upward against the downward pellet flow, reducing both temperature and moisture to prevent surface cracking.

  • Grading & Screening Section

    Grading & Screening Section

    Rotary screener can separate powder and defective pellets, ensuring that the finished pellet has a consistent size.

  • Automated Packaging Section

    Automated Packaging Section

    Computer-controlled packaging scale is used to achieve rapid weighing, smooth bagging, and efficient sealing.

  • Coarse Grinding Section

    Coarse Grinding Section

    Large-particle raw materials such as grains are initially crushed to prepare for subsequent fine processing.

  • Fine Grinding Section

    Fine Grinding Section

    Further grinding the raw materials improves the fineness of the feed, making it easier for fish to digest and absorb.

  • Mixing Section

    Mixing Section

    Various powdered raw materials and nutritional additives are mixed evenly to ensure that each feed pellet has a balanced nutritional profile.

  • Extrusion Section

    Extrusion Section

    High-quality floating fish feed is produced by maturing and extruding the mixture using high-temperature and high-pressure technology.

  • Drying Section

    Drying Section

    It quickly removes excess moisture from extruded feed, extending its shelf life while maintaining its pellet structure.

  • Coating Section

    Coating Section

    Oils and flavorings are evenly sprayed onto the surface of the feed to enhance its energy content and the fish's palatability.

  • Cooling Section

    Cooling Section

    Uniform cooling of high-temperature pellets ensures that the feed hardness meets the standards, facilitating subsequent packaging.

  • Screening Section

    Screening Section

    Screen out dust and substandard particles from the pellets to ensure that the finished fish feed is of uniform size.

  • Packaging Section

    Packaging Section

    Qualified finished feed is accurately weighed and sealed to facilitate quantitative transportation and storage.

FIND THE RIGHT CAPACITY
FOR YOUR ANIMAL FEED PLANT

  • 1-2 TPH
  • 3-4 TPH
  • 5-7 TPH
  • 8-12 TPH
  • 12-20 TPH
  • 20-30 TPH
  • 30-40 TPH
  • 40-50 TPH
  • 50-60+ TPH
1-2 TPH
3-4 TPH
5-7 TPH
8-12 TPH
12-20 TPH
20-30 TPH
30-40 TPH
40-50 TPH
50-60+ TPH

ENGINEERED ANIMAL FEED
PRODUCTION PROCESS DESIGN

  • Custom Process Design
  • Automated Production Line
  • Intelligent Production Control
  • Continuous-Duty Reliability

KEY EQUIPMENT FOR
HIGH-EFFICIENCY ANIMAL FEED MILLS

LUODATE YOUR EXPERT PARTNER
FOR GLOBAL TURNKEY PELLET MILL PROJECTS

MORE ABOUT LUODATE

ANIMAL FEED PELLET SOLUTIONS
FOR SUSTAINABLE BUSINESS GROWTH

  • AUTOMATED PRODUCTION FOR IMPROVED EFFICIENCY

    Automated processes such as batching, grinding, pelleting, and packaging reduce human error and improve batch-to-batch consistency, producing high-quality feed pellets that are uniform in size with minimal fines.



    For farm operators, producing feed in-house gives direct control over ingredient sourcing and processing costs. For feed manufacturers, automation reduces labor requirements per ton and minimizes material waste during processing.

  • COMPLETE PROCESS CONTROL FOR BETTER FEED QUALITY

    Feed quality directly impacts animal growth rate, feed conversion ratio, and overall health. Unstable feed quality, whether due to uneven mixing, uneven grinding, or poor pellet quality, leads to slow growth, increased mortality, and feed waste.



    A complete production line allows you to control every step affecting feed quality, from raw material procurement to grinding, mixing, pelleting, and cooling. Controlling the production process means controlling the final output.

  • FLEXIBLE CONFIGURATION FOR MULTIPLE FEED TYPES

    Different animal species, growth stages, and production objectives require different feed formulations. Modern production lines provide this flexibility by adjusting batching ratios, changing hammer mill screens for grinding fineness, and switching ring dies for different pellet sizes.



    For farm operators, this allows feed formulas to adapt as animals grow. For feed manufacturers, it enables the production of multiple feed types without investing in separate equipment.

PROVEN SUCCESS IN
GLOBAL TURNKEY PROJECT DELIVERIES

Australia
  • Customized Solution

Australia

10-20T/H Cattle & Sheep Animal Feed Pellet Production line

USA
  • Reliable Performance

USA

15T/H Automatic Poultry Feed Pellet Manufacturing Plant

Colombia
  • Efficient Operation

Colombia

15T/H Automatic Computerized Batching Animal Feed Production Line

Poland
  • Turnkey Solution

Poland

10-15TPH Intelligent Livestock & Poultry Feed Turnkey Project

Uzbekistan
  • Stable Production

Uzbekistan

10 TPH Complete Poultry & Ruminant Feed Production Line Project

Philippines
  • High Output

Philippines

30TPH Industrial Automatic Poultry Feed Pellet Production Line

SUPPORT AND SERVICE

SERVICE SUPPORT FROM
PROJECT DESIGN TO LONG-TERM OPERATION

From equipment configuration and process design through installation, training, and spare parts supply, LUODATE supports your line at every stage.

LET'S START THE
CONVERSATION.

Learn how we partner with you to deliver professional pelleting
solutions and support your long-term production goals.

LEARN MORE

REQUIRE MORE CUSTOMIZED PRODUCTS AND TECHNICAL ADVICE?

Send over your requirements and we can offer one-stop technical advice and Industry solutions to meet your needs.
